In materials science and engineering, creating materials that are strong, reliable, and versatile is very important. For example, structural steel supports tall buildings, electrical copper powers smartphones, and biocompatible titanium is used for medical implants. The properties of these materials can change due to their chemical composition and the processing methods used during manufacturing. One key technique for improving material properties is called annealing. This guide will explain what annealing is, the process, and why it is essential in various industries.

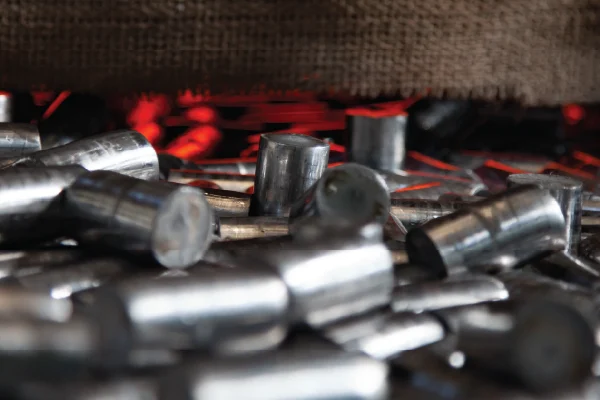

What Is Annealing?
Annealing is a heat treatment process that changes the physical and sometimes chemical properties of a material. The main goals of annealing are to improve ductility (the ability to bend without breaking), reduce hardness, and relieve internal stresses that may have built up during earlier processing. These changes make materials easier to work with and less likely to fail.
The annealing process has three main stages:
- Heating: The material is gradually heated to a specific temperature, typically above the recrystallization temperature and below its melting point. This temperature is selected based on the material’s properties and the intended changes.
- Holding: Once reaching the target temperature, the material stays at this temperature for a set period. This time is essential, as it allows atoms to move and rearrange within the material.
- Cooling: After holding, the material cools down at a controlled rate. This step is crucial to achieving the desired properties. Rapid cooling can create new stresses, while slower cooling results in a more uniform structure.
Through this process, the internal structure of the material changes significantly, which affects its mechanical and physical properties.
The Science Behind Annealing
Microstructural Changes
The success of annealing comes from its ability to induce changes at the microstructural level in metals and alloys. This process typically occurs in three stages:
- Recovery: At lower temperatures, atoms gain enough energy to move slightly, allowing dislocations (defects in the crystal structure) to rearrange. Reducing internal stresses somewhat restores ductility without significant changes to the overall structure.
- Recrystallization: As the temperature rises to the recrystallization point, new, strain-free grains form and grow, replacing the deformed grains from previous work. This stage is key to restoring the material’s properties by eliminating accumulated strain.
- Grain Growth: If the annealing continues beyond recrystallization, these new grains can grow larger. Larger grains can improve ductility, which is good, but can also lower strength. Careful control of the annealing process is needed to balance strength and ductility for different applications.
Thermodynamics and Kinetics
Annealing works based on the principles of thermodynamics and kinetics, which explain how atoms behave during heat treatment. The heat applied during annealing makes atoms move more easily, helping the material reach a more stable and lower-energy state. Factors like heating rate, duration at the annealing temperature, and cooling rate all affect the material’s properties.
- Diffusion: Atom movement, known as diffusion, is a key part of annealing. Higher temperatures help atoms move freely, which reduces defects and creates a more uniform material.
- Phase Changes: Annealing can also cause phase changes in the material, altering its crystal structure to a more stable form. These changes can improve strength, hardness, and ductility, making the material better suited for its intended uses.
Types of Annealing Processes
Annealing is a necessary process used in metallurgy to improve the properties of different materials. There are several types of annealing techniques, each designed for specific purposes.
Full Annealing
- Process: Heat the metal above its critical temperature, hold it there for a while, and then cool it slowly in the furnace.
- Result: The metal becomes softer and more ductile, which is better for machining and forming.
- Common Uses: Mainly used with steel to improve machinability and reduce hardness.
Process Annealing (Subcritical Annealing)
- Process: Heat the material to a temperature below its critical point, usually between 500-800°C.
- Result: This process restores ductility in metals weakened by previous cold-working.
- Common Uses: Low-carbon steels to regain flexibility without significantly changing the structure.
Stress Relief Annealing
- Process: Heat the material to a specific lower temperature to relax internal stresses without significant changes to its structure.
- Result: It helps prevent distortion and cracking during further processing.
- Common Uses: Large castings and welded structures that are prone to internal stresses from manufacturing.
Spheroidizing Annealing
- Process: Heat high-carbon steel below the eutectoid temperature to change its microstructure into a more spherical form.
- Result: Produces spheroidized carbides, making the material easier to machine.
Isothermal Annealing
- Process: Heat the metal above its critical temperature, quickly cool it, then hold it at a lower temperature to achieve specific structure characteristics.
- Result: Creates a uniform structure that significantly improves the material’s machinability.
Diffusion Annealing (Homogenizing)
- Process: This treatment, at high temperatures, helps atoms diffuse within the material for uniformity.
- Result: Reduces chemical segregation in alloys, enhancing their mechanical properties.
Bright Annealing
- Process: Conduct in a controlled inert atmosphere or vacuum to avoid oxidation during heating.
- Result: Achieves a bright, clean surface finish important for both aesthetics and function.
Vacuum Annealing
- Process: Perform annealing under a vacuum to eliminate contamination from the atmosphere.
- Result: Produces a high-quality surface finish, ideal for sensitive materials in aerospace.
Flame Annealing
- Process: Use a localized flame to heat specific areas of the material directly.
- Result: Allows for targeted heat treatment, adjusting properties in certain zones.
Each of these processes is chosen based on the desired material properties, application needs, and planned use of the final product.
Advantages of Annealing
- Better Ductility and Workability: Annealing makes metals more ductile. Meaning they can be shaped and formed easily without cracking, making them useful in industries like automotive and aerospace.
- Lower Hardness: The annealing process reduces the hardness of metals, making machining and forming easier. It is helpful when preparing metals for cutting, shaping, or welding, as softer materials can speed up production.
- Less Internal Stress: Manufacturing processes like rolling, casting, or welding can create internal stress in metals. Annealing helps relieve these stresses by allowing atoms to realign, improving the metal’s overall strength and performance.
- Better Machinability: Annealed metals are softer and free of stress, which improves their machinability. Allowing for quicker cutting, drilling, and milling, speeding up production, and reducing tool wear.
- Improved Electrical and Thermal Conductivity: Annealing helps fix defects in the metal’s crystal structure, enhancing its electrical and thermal conductivity. It is crucial in applications like electrical wiring and heat exchangers, where energy transfer matters.
- Consistent Material Properties: The annealing process creates a more uniform microstructure, ensuring consistent mechanical properties. This uniformity is crucial for maintaining quality in manufacturing.
- Longer Product Lifespan: By making metals stronger and less likely to fail, annealing extends the lifespan of products. Meaning lower maintenance costs and less need for replacements.
Disadvantages of Annealing
- Low Productivity: Annealing takes time, often requiring long heating and cooling cycles. It can slow down production rates.
- More Labor-Intensive: In large industrial settings, annealing can require more manual work. It is due to the careful monitoring and handling of materials.
- Long Cooling Times: Slow cooling is necessary during annealing to avoid new stresses or defects. It can delay production.
- Risks of Uneven Heating: It’s essential to heat metals evenly during annealing. If not done, it can lead to inconsistent qualities in the final product.
- Sensitive Temperature Control: Precise temperature management is key in annealing. Even small mistakes can lead to poor results, like unwanted changes in the metal structure.
- High Energy Use: The heating and cooling required for annealing uses a significant amount of energy, increasing costs and impacting the environment.
FAQs
Define: Annealing
It is a heat treatment process that softens metal, improving its ductility and reducing internal stresses.
What materials can be annealed?
Metals like steel, aluminum, and copper can be annealed to improve their properties.
What is rapid thermal annealing?
It is a process that quickly heats materials to improve their properties.
What does annealing do?
It relieves internal stresses, improves ductility, and enhances the mechanical properties of metals.
