Inconel is a highly sought-after material in advanced engineering where performance under pressure is king. It is a member of the nickel-chromium superalloy group, characterized by outstanding corrosion resistance, high temperature resistance, oxidation resistance, and incredible strength. Inconel is a standard material in everything from jet engines to oil and gas extraction equipment.
In this post, we will cover the definition, the history, its properties, and the industries that use it.
What is Inconel?
Inconel is part of a family of austenitic nickel-chromium-based superalloys. This particular superalloy includes a combination of other elements like molybdenum, niobium, and aluminum. When Inconel is heated, it creates a passivating oxidation layer that protects itself from heat and other extreme environmental onslaughts. At high temperatures, it retains strength and doesn’t surrender to creep as a result of thermally-induced crystal vacancies, like aluminum and steel.
The Composition of Inconel
Over 50% of Inconel alloys are nickel, which is why they are part of the high-temperature nickel superalloy group. Other elements can include chromium, iron, molybdenum, niobium, cobalt, or aluminum, depending on the grade.
The table below shows a few standard Inconel alloys:
| Alloy | Strengthening Mechanism | Key Elements | Notable Properties | Typical Applications |
|---|---|---|---|---|
|
Inconel 600 |
Solid Solution |
Ni, Cr, Fe |
Oxidation/Corrosion Resistance, Heat Stable |
Furnaces, Chemical Processing |
|
Inconel 625 |
Solid Solution |
Ni, Cr, Mo, Nb |
Corrosion Resistance, Weldability, Strength |
Marine, Chemical, Aerospace |
|
Inconel 718 |
Precipitation Hardening |
Ni, Cr, Fe, Nb, Mo, Al, Ti |
High Strength, Creep/Fatigue Resistance |
Jet Engines, Turbines, Fasteners |
What is Inconel's history, and how is it made?
The Inconel alloy family was trademarked in 1932 in the United States by the International Nickel Company, a solution for materials that could withstand harsh conditions and extreme environments. Early use of these alloys included aerospace components for the Whittle jet engine. British Royal Air Force engineer and officer Frank Whittle introduced the first turbojet engine during World War II. Inconel surpassed its original designations due to its incredible properties, leading to the expansion into more specialized grades such as Inconel 600, 625, and 718.
Producing Inconel involves melting elements such as nickel, chromium, iron, molybdenum, niobium, cobalt, or aluminum in high-temperature furnaces, resulting in the composition of the molten alloy. From here, the manufacturer reduces impurities, and solidification into ingots or billets takes place. Processing by hot rolling, forging, or other forming techniques is the next step to achieve the desired blank shape. Then Prototek receives these final forms and refines them further to create the components our customers require.
Today, with advancements in additive manufacturing, Inconel is experiencing growth in aerospace, particularly in the production of complex and consolidated parts. Research continues focusing on improving composition, processing, and sustainability.
Mechanical Properties for Inconel
The properties of Inconel vary from alloy to alloy depending on the alloying elements. Overall, the superalloys tend to have high strength at elevated temperatures and have high corrosion and oxidation resistance. They maintain their mechanical properties in extreme environments, making them an excellent choice for demanding high-performance applications such as aerospace, marine, oil and gas, and power generation.
Phenomenal High-Temperature Strength
The retention of mechanical strength at extreme temperatures was a goal during the development phase of Inconel alloys because conventional materials such as aluminum and carbon steel tended to degrade or fail. This property makes it ideal for components in aerospace engines, chemical reactors, and power generation turbines, where encountering high temperatures is common and prolonged.
With exposure to high temperatures, the alloys exhibit high fatigue, tensile, and yield strength. Inconel alloys can also resist deformation and fracturing with sustained mechanical stress, making them creep-resistant and exceptional for long-term applications.
Remarkable Corrosion and Oxidation Resistance
Resistant to both corrosion and oxidation, Inconel is suitable for harsh environments where other materials would deteriorate. These alloys can withstand corrosive conditions such as various chemicals, acids, and saline environments. This characteristic makes them an exceptional choice for applications in the chemical processing, marine, and oil and gas industries. It also forms a passivating oxide layer with exposure to high temperatures, which acts as a deterrent to further oxidation.
Wide Temperature Range Stability
These alloys have a lower rate of thermal expansion in comparison to other metals. The result is minimal dimensional changes with fluctuations in temperatures. It also maintains its mechanical and physical properties with both low and high temperature swings.
Outstanding Pressure and Stress Resistance
Inconel’s exceptional performance beneath both tensile and shear loads while in elevated temperatures makes it superior to a variety of stainless steel alloys. It offers fatigue resistance critical for components that undergo cyclic loading, such as those in aviation and industrial applications.
Reliability in Harsh Environments
Effective in a diverse array of uses, due to its ability to resist harsh environments and operational conditions without degradation, Inconel is an all-star material. Its wear, corrosion, and thermal resistance offer long-term dependability in taxing conditions. In turn, this reduces maintenance expenses and increases operational efficiency.
Strengthening Mechanisms
- Solid Solution Strengthening: Alloying elements (like chromium, molybdenum, and nickel) achieve this through interfering with the movement of the dislocations within the material’s crystal structure.
- Precipitation Strengthening: In certain alloys, such as Inconel 718, fine, dispersed precipitates (gamma-prime and gamma double-prime) form within the nickel-based matrix. Significantly increases its strength by obstructing the dislocation movement.
What industries benefit from Inconel superalloys?
Aerospace
Inconel has vast use in manufacturing exhaust systems, jet engine components, and turbine blades, where dependability and performance are necessary. Specifically, the use of Inconel 718 in manufacturing combustion casings, shafts, spools, and turbine discs in airplane engines, where materials must have high strength and be oxidation resistant.
Oil & Gas

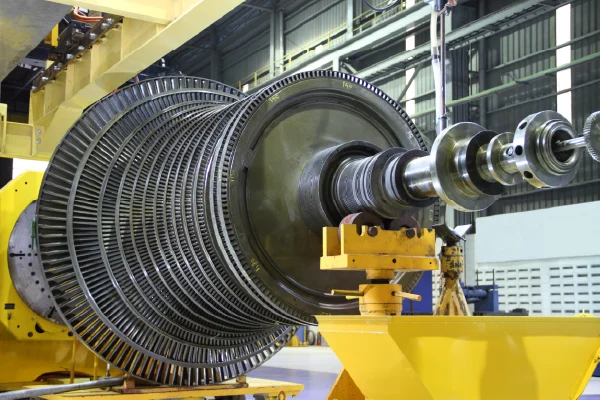

Critical equipment, such as downhole tools, drill collars, gas turbine combustors, rotor blades, and valves, is frequently made with Inconel due to its ability to withstand corrosive, harsh conditions with high pressures and extreme temperatures. Materials with these properties ensure operational safety and reliability.
Chemical Processing Equipment
From reaction chambers to valves and heat exchangers for processes involving intense chemicals and temperatures, Inconel is an outstanding option. For example, Inconel 693’s use in thermowell assemblies for ammonia synthesis reactors is essential for an effective process procedure.
Nuclear Power & Energy
Nuclear reactor components, as well as heat exchangers, use Inconel because the material’s integrity is vital for safety and efficiency. Due to its resistance to corrosion, heat, and radiation, as well as its high strength, alloys like 600, 690, and 625 are common in coolant system pipes, fuel rod casings, reactor core components, and steam generator tubes.
Automotive
Turbocharger rotors and exhaust systems use Inconel because of its high performance and heat resistance.
Marine
Inconel holds up exceptionally well in saline environments, making it an ideal choice for offshore oil platforms, propeller blades, and underwater communication wires sheaths.
FAQs
Define: Inconel
Inconel is a high-performance nickel-chromium alloy known for its exceptional heat and corrosion resistance.
What elements make up Inconel alloys?
Inconel alloys are primarily composed of nickel, chromium, and iron, with varying amounts of other elements such as molybdenum, copper, and titanium.
Is Inconel magnetic?
Inconel is a non-magnetic superalloy that offers excellent corrosion resistance.
What are the common uses of Inconel?
Inconel is commonly used in aerospace, chemical processing, and high-temperature applications.
Can Inconel be welded?
Yes, Inconel can be welded using specialized techniques to ensure a strong, durable bond. Our expert team at Prototek Digital Manufacturing can assist with your Inconel welding needs.
